Using the water tank on the trailer and carrier unit

This article describes how to use the water tank on the trailer and carrier unit for refilling the AX-1 with clean water.

How to pump water from the trailer tank

The trailer and the carrier unit are  equipped with a water tank and a pump for use to refill the AX-1 with clean water.



The pump is powered by the generator on the AX-1.

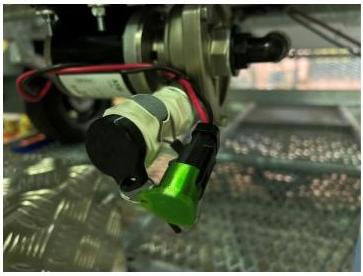

  1. Remove the cap from the power connector of the pump and release the hose connector plug by pressing the release button.

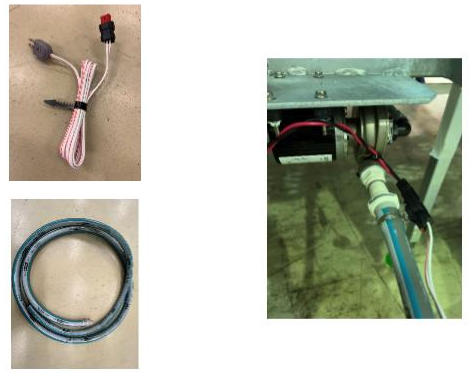

  2. Connect the power cable and the included filling hose to the pump.
  3. Drive the AX-1 close to the trailer.

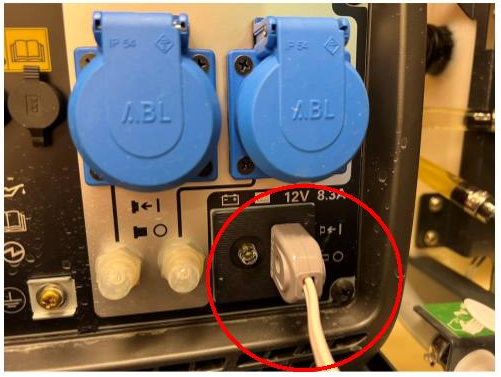

  4. Make sure the generator is running, then connect the power cable to the generator as shown in the picture below.

    The generator will power the pump, which will immediately start running.

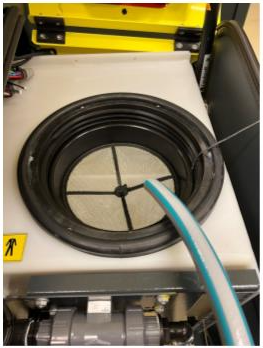

  5. You can now fill the tanks of the AX-1.
  6. Once the tanks are full, disconnect the power cable from the generator and then disconnect the filling hose from the pump. Replace the hose connector plug and the cap on the power connector.
